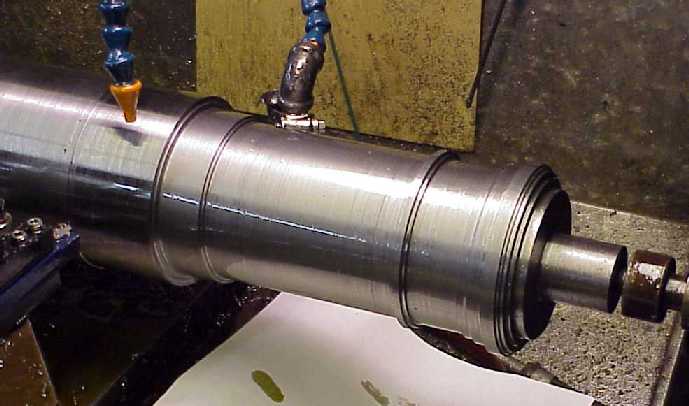

The first course is a cylindrical section 5.675" long and 3.500" in diameter with a narrow band about a quarter of the way from the breech ring.  First we will rough off the excess to the left of the first/second course bands, then we will rough down to the 3.5" first course diameter and locate the edges of the bands.  Now we do the right sides of the narrow band and the transition band.

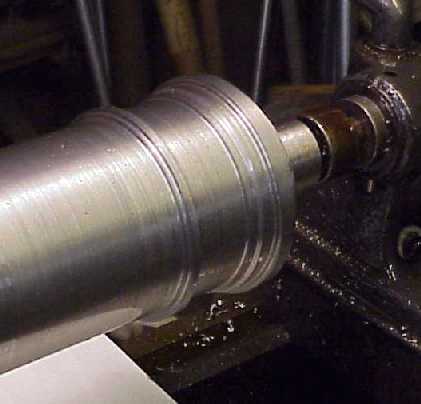

Next we change tools and come back and do the left side of the narrow band to the rear.



Next we will work on the first/second course bands and the second course.
