AUTHENTIC CANNON DRAWINGS
NEW for 2012  *
2012 - 1
Antique Ordnance Publishers
PO Box 610434   Port Huron, MI  48061
Tel: 810 987-7749   Cell: 810 444-9710   email: AOrdP434@comcast.net

We have been researching artillery and cannon material for over 50 years and have been selling artillery and cannon related drawings since 1971.  Most of our drawings are copies of original US Ordnance Department or US Navy drawings.  These have been enlarged and/or retouched to make the drawings readable and are presented in an 11" x 17" book format.  Most are very detailed right down to the thread dimensions on the bolts.  In a few cases, it has been necessary to draw up the details when original drawings could not be located.  A few publications such as No's 67 and 68 are research paskets.  A research packet contains all of the information that we have been able to locate on that piece of ordnance or carriage, and consists of text, sketches, drawings and photographs.  There is more than enough information for a person knowledgeable in cannon or srtillery to construct a full size cannon or a model.

AOP No. Description Retail Price No. of Pages Base Postage US Field Artillery - Civil War & Later No. 12 Six Civil War Cannon on a No. 1 Field Carriage New 4th Edition 2009 [10 Pdr PARROTT Rifle, 3 Inch Ordnance Rifle, 6 Pdr gun, 12 Pdr Field Howitzer, Rifled 6 Pdr Gun, 3 In PARROTT Rifle] $25 120 $10 No. 20 Civil War 12 Pdr NAPOLEON, on a No. 2 Field Carriage 2009 Edition $25 120 $10 No. 21 Civil War Field Gun Limber for all Field Carriages 2009 Edition $25 112 $10 No. 26 Civil War 20 Pdr PARROTT Rifle on a No. 3 Field Carriage $20 69 $8 No. 27 Civil War 12 Pdr Gun, Model 1841 (with handles) on a No. 3 Field Carriage $20 65 $8 No. 28 Civil War 2.6 Inch WIARD Rifled Cannon & Carriage $25 106 $10 No. 32 Civil War 3.67 In DELAFIELD Rifled Cannon & No. 1 Field Carriage $15 87 $8 No. 34 Civil War Artillery Harness for Field & Siege Carriages, 1848 & 1862 $20 41 $8 No. 40 Equipment Drawings for Civil War Field Artillery $20 34 $8 No. 60 Civil War Field Artillery Battery Wagon  Revised 2009 Edition $25 102 $10 No. 61 Civil War Field Artillery Traveling Forge  Revised 2009 Edition $30 122 $10 No. 62 Civil War Field Artillery Caisson   Revised 2009 Edition $25 120 $10 US Siege Artillery - Civil War No. 16 Ranges of Parrott Guns and Notes for Practice (an 8.5 x 11 manual) $5 20 $3 No. 80 Civil War 30 Pdr. Parrott Rifle on a Wooden Siege Carriage $25 80 $8 No. 81 Civil War Siege Limber for Siege Guns and the Mortar Wagon $25 70 $8 No. 82 Civil War Mortar Wagon for 8 & 10 Inch Siege Mortars $25 68 $8 No. 84 Civil War 8 Inch Siege and Garrison Howitzer Models 1841 & 1861 $25 116 $8* US Mountain Artillery - Civil War & Later No. 07 Instructions for Mountain Artillery 1851 (an 8.5 x 11 manual) $5 38 $3 No. 25 Civil & Indian War 12 Pdr Mtn Howitzer & Pack Carriage $20 60 $8 No. 29 Civil War Mountain Artillery Portable Forge $12 23 $7 No. 65 Pack Saddles, Harness, Shafts, and Packs for the 12 Pdr Mtn Howitzer $15 26 $8 No. 66 Ammunition Box for the 12 Pdr Mountain Howitzer - Pack Carriage $10 30 $8 No. 67 Civil & Indian War Mtn Howitzer on a 1st Model Prairie Carriage [Research Packet] $20 75 $8 No. 68 Civil & Indian War Mtn Howitzer on a 2nd Model Prairie Carriage [Research Packet] $20 80 $8 No. 70 Limber for the 12 Pdr Mtn Howitzer on a 2nd Model Prairie Carriage $15 52 $8 US Sea Coast Artillery - Civil War No. 90 Civil War 32 Pdr Seacoast Gun on a Wooden Front Pintle Barbette Carriage $25 94 $9 No. 91 Civil War 24 Pdr Siege and Garrison Gun on Front Pintle Barbette Carriage $25 127 $9* No. 92 Civil War 18 Pdr Siege and Garrison Gun on Front Pintle Barbette Carriage $25 120 $9* No. 93 Civil War 12 Pdr Siege and Garrison Gun on Front Pintle Barbette Carriage $25 120 $9* No. 101 Civil War 100 Pdr. Parrott on an Iron Center Pintle Barbette Carriage $15 23 $8 No. 102 Civil War 8 Inch Parrott on an Iron Front Pintle Barbette Carriage - 1863 $20 46 $8 No. 103 Civil War 300 Pdr. Parrott on an Iron Barbette Carriage $15 18 $8 US Mortars - Civil War No. 22 Civil War Bronze 24 Pdr COEHORN Mortar $15 36 $8 No. 41 Civil War 13 Inch Sea-Coast Mortar, Model 1861 $15 38 $8 No. 42 Civil War 8 Inch Siege Mortar, Model 1841 $15 20 $8 No. 43 Civil War 10 Inch Siege Mortar, Model 1841 $15 20 $8 No. 44 Civil War 10 Inch Sea-Coast Mortar, Model 1844 $15 31 $8 No. 48 Civil War 8 Inch Siege Mortar, Model 1861 $15 30 $8 US Navy Cannon - Civil War and After No. 24 60 Pdr PARROTT on a Navy Marsilly Carriage   1873 $10 16 $8 No. 50 IX Navy Dahlgren Shell Gun on a Wooden Marsilly and an Iron Carriages $15 21 $78 No. 51 32 Pdr Navy Gun & Carriage for the USN Steamer Waterwitch - 1851 $15 21 $8 No. 55 Civil War 12 Pdr DAHLGREN Light Boat Howitzer on a Landing Carriage $25 50 $8 No. 57 Civil War 12 Pdr DAHLGREN Heavy Boat Howitzer on a Boat Carriage $15 18 $8 No. 59 Civil War 12 Pdr DAHLGREN Heavy Boat Howitzer on a Landing Carriage $20 48 $8 US Gatling Guns - Post Civil War No. 35 Gatling Gun Metal Field Carriage, 45 Cal with Eccles Feed 1883/84 $15 25 $8 No. 36 Handbook - 30 Cal Gatling, Models 1895, 1900, 1903 inc free dwgs $15 32 $8 No. 38 Wooden Field Carriage Drawings for an early 50 cal. Gatling - 1870's $15 20 $8 US Quartermaster Dept & US Ordnance Dept No. 75 Civil War US Army Six Mule Supply Wagon - Model 1858 $40 130 $12* No. 104 Civil War Hand Cart for moving small cannon and small mortars $10 20 $8 Confederate States of America Cannon No. 23 CSA Civil War 12 Pdr Breech Loading WHITWORTH Rifled Cannon $15 21 $8 No. 37 CSA 7 In BROOKE Rifled Cannon on a Shifting Pivot Carriage $15 22 $8 No. 56 Civil War CSA 2.25 Inch Mountain Rifle & Field Carriage $20 60 $8
The listed Publications are printed on an 11" X 17" format except as noted. Checks or Money Orders Only     Sorry NO CREDIT CARDS     Prices valid through 12-31-12 unless new data increases book size * For small orders we ship by U.S. Priority Mail. For multiple book orders, use the highest item postage + $5.00 for each additional book. NOTE: For Mountain Time Zone delivery add $4.00 per order   For Pacific Time Zone delivery add $5.00 per order.  Mail Rates have increased Example: No 12 & No 21 mailed to California  $25 + $25 + $10 + $5 + $5 = $70 For large orders of 10 or more books, we can ship UPS Ground for a flat charge of $25.00 New drawings are added frequently, call us for your specific needs
A word about postage.  We have been doing this since 1971.  Over this period, we have tried several shipping methods and US Postal Classifications. US Postal Priority Mail has worked the best.  Even with this we lose shipments and must replace about 4% each year.  Our books are done on heavy 60# offset grade paper.  Our covers are 10 mill heavy stock.  Our mailers are a very heavy cardboard stock.  US Postal rates are based on size and weight.
Thanks for considering Antique Ordnance Publishers Don & Jan Lutz

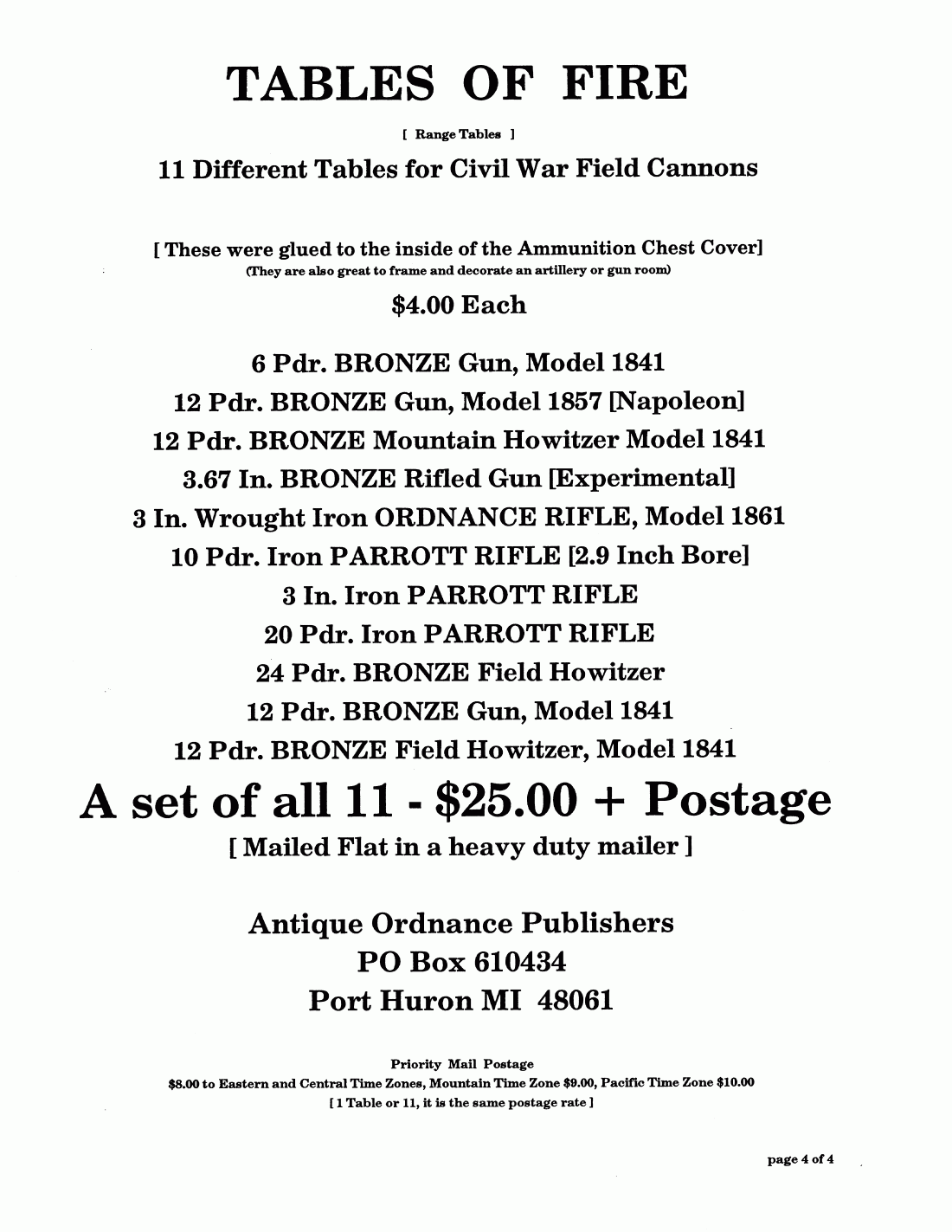

TABLES OF FIRE

[Range Tables]

10 Different Tables for Civil War Field Cannons

[These were glued to the inside of the Ammunition Chest cover]
(They are great to frame and decorate an artillery or gun room)

$4.00 Each

6 Pdr. BRONZE Gun, Model 1841

12 Pdr. BRONZE Gun, Model 1857 [Napoleon]

12 Pdr. BRONZE Mountain Howitzer Model 1841

3.67 In. BRONZE Rifled gun [Experimental]

3 In. Wrought Iron ORDNANCE RIFLE, Model 1861

10 Pdr. Iron PARROTT RIFLE [2.9 Inch Bore]

3 In. Iron PARROTT RIFLE

20 Pdr. Iron PARROTT RIFLE

24 Pdr. BRONZE Field Howitzer

12 Pdr. BRONZE gun, Model 1841


A set of all 10 - $25.00 + Postage

[Mailed Flat in a heavy duty mailer]

Antique Ordnance Publishers
PO Box 610434
Port Huron, MI  48061

Priority Mail Postage
$5.00 to Eastern and Central Time Zones, Mountain Time Zone $7.00, Pacific Time Zone $9.00
[1 Table or 10, it is the same postage rate]
